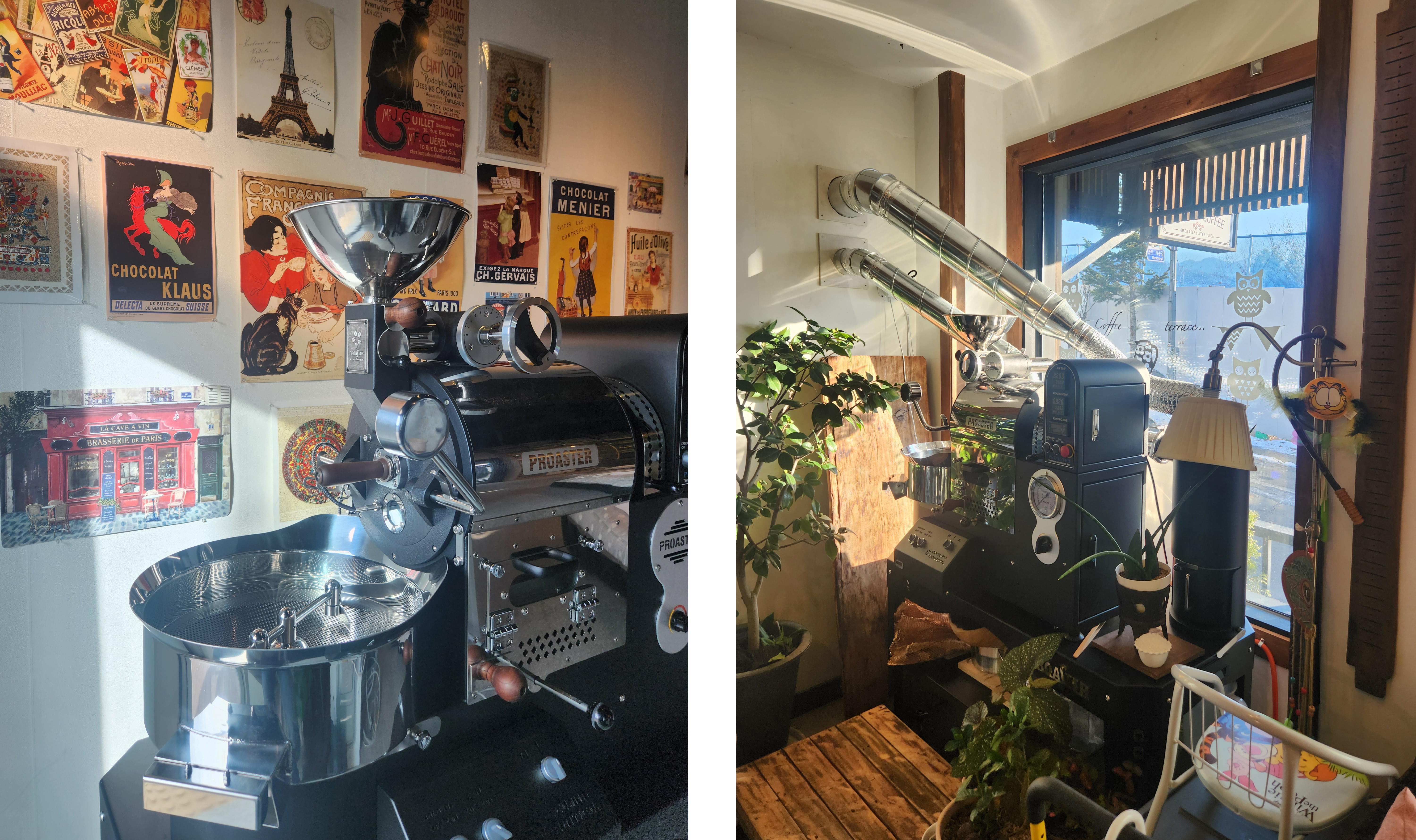

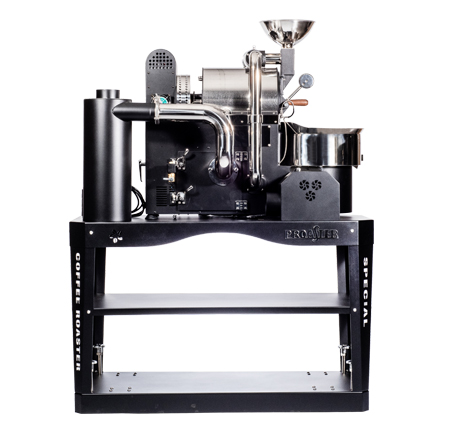

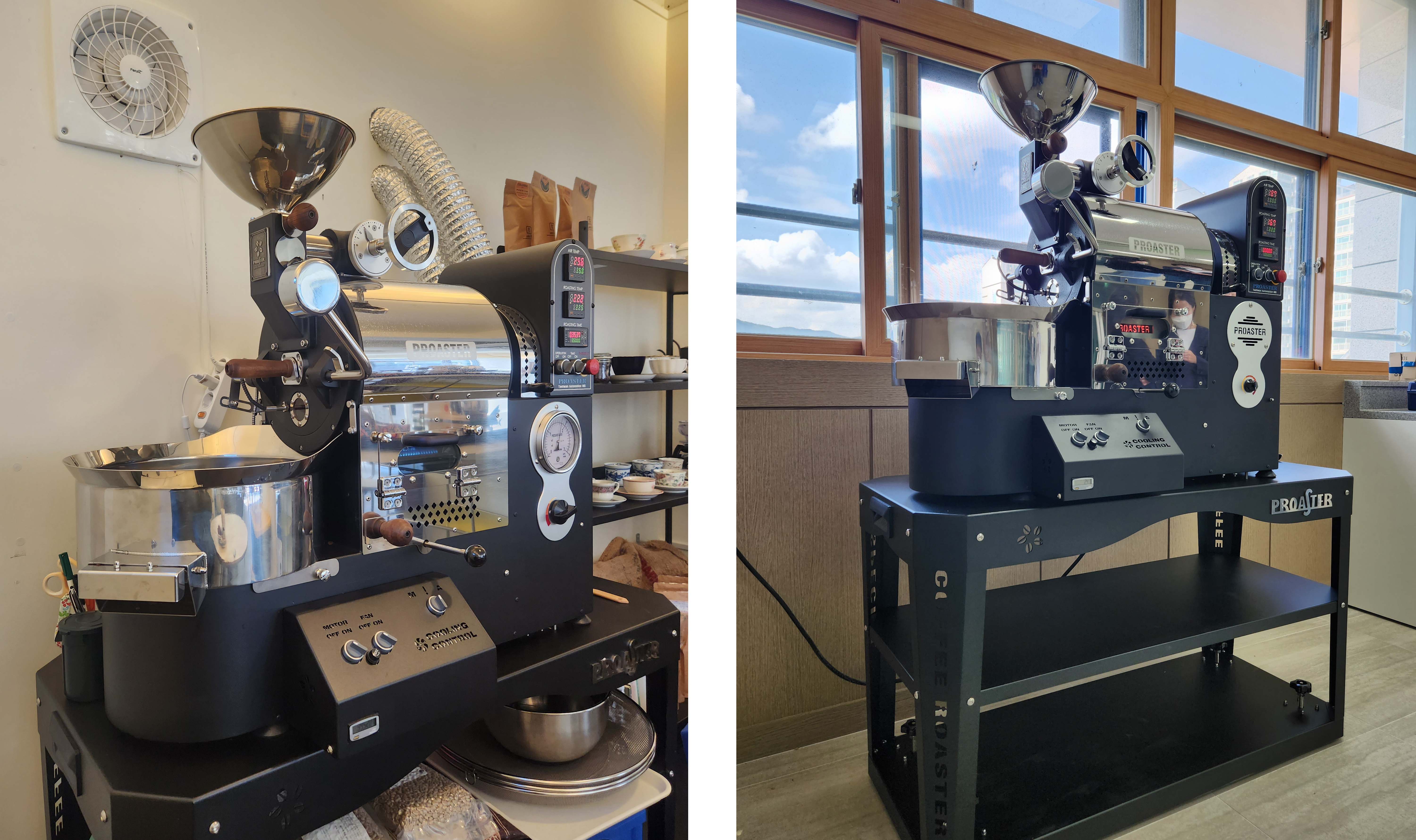

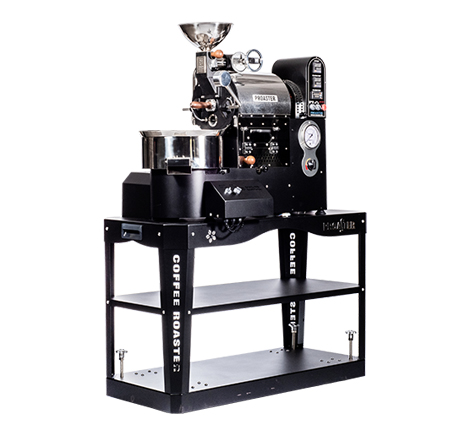

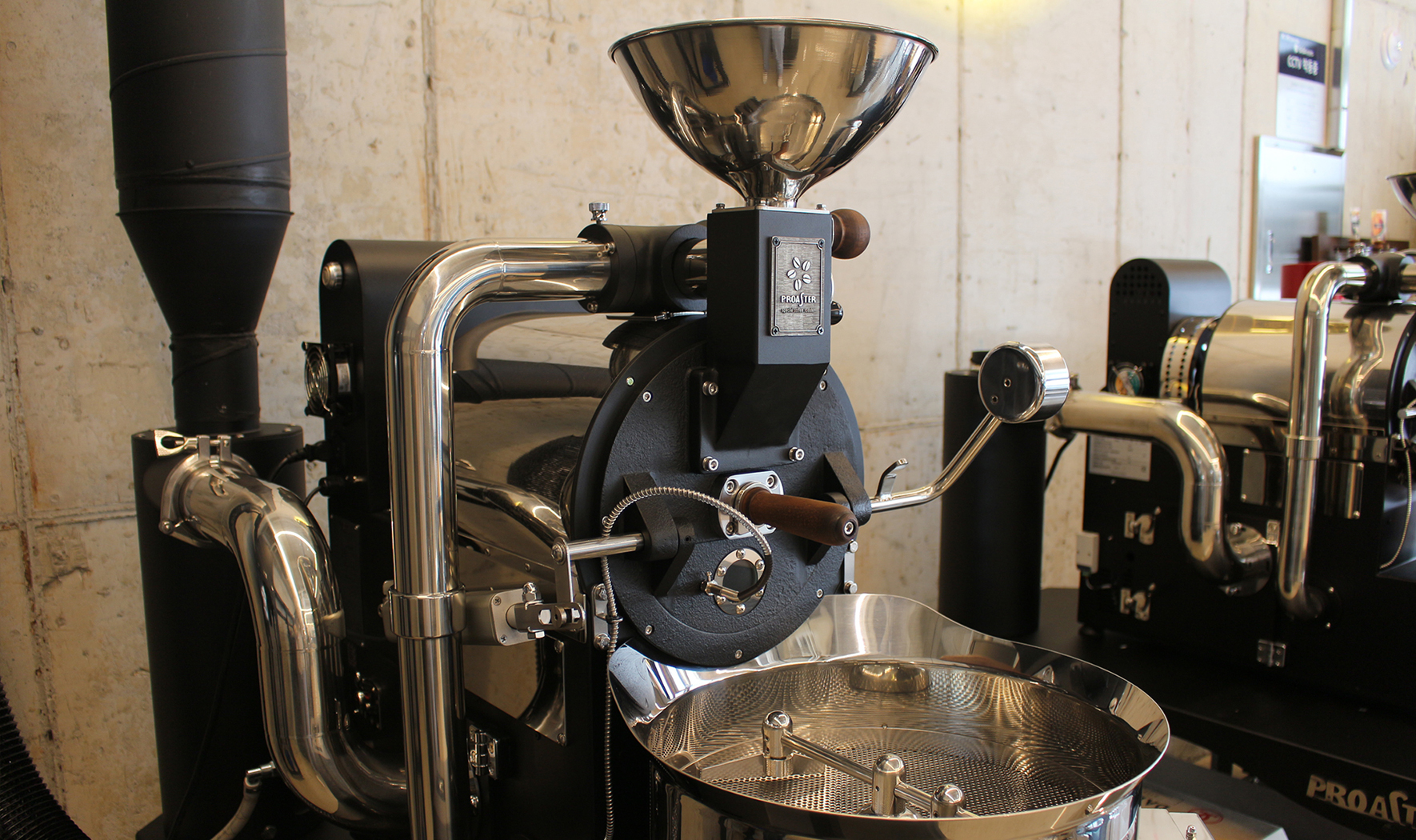

THCR-01A

Name: THCR-01A
Brand: PROASTER
SKU: THCR-01A

From your first café roast to professional profiling. PROASTER's best seller, with batches up to 1.5 kg.

Request a Quote

1-phase 220V 60 Hz

LPG (low-pressure) 3,900 kcal · Electric heater 3.3 kW/h

500 g~1.5 kg/batch

5~20 mins

Features

Semi-Hot-Air Roasting
A roasting method that combines stable radiant heat with hot air for rich flavor, delivering more uniform heat transfer than direct-flame drums.
Best-Seller, Now Refined
Evolved from the CR-01 with improved thermal balance and operability while keeping the roast quality that made it a best-seller.
Maximum Thermal Efficiency
A high-efficiency drum design that lets you complete a roast in about 10 minutes while preserving rich body and aroma.
Precise Damper Control
Damper adjustment lets you fine-tune exhaust flow, giving you delicate control over flavor and aroma.
Rapid Cooling System
A dedicated high-power blower cools the beans quickly, locking in flavor and aroma.
Flame Failure / Power-Loss Safety
If power fails or the exhaust blower stops, the gas valve will not open.
Overheating Protection
Gas is shut off automatically when the operating temperature is exceeded.

Dimensions W×L×H (mm): 529 x 1012 x 869 mm (Main body)641 x 1256 x 1574 mm (Installed)
Power: 1-phase 220V 60Hz
Batch Capacity: 300g~1.2kg / batch (MAX 1.5kg)
Roast Time: 5~20 MINS
Power Consumption: 310w/hr
Gas Pressure: Low-pressure : LPG (2.3~3.3 ) kpa | City gas (LNG) (13 A) [1.0 ~2.5] kpa
Gas Consumption: LPG 0.29 kg/hr [4.0kW] | City gas (LNG) (13A) 3900kcal/hr [4.5kW]
Weight: Main body / Cyclone / Table 150kg
Dimensions W×L×H (mm): 529 x 1012 x 869 mm (Main body)641 x 1256 x 1574 mm (Installed)
Power: 1-phase 220V 60Hz
Batch Capacity: 300g~1.2kg / batch (MAX 1.5kg)
Roast Time: 5~20 MINS
Power Consumption: 3.5kw/hr (Electric) *Do not use non-original accessories
Weight: (Main body 90 / Cyclone 10 / Table 50) 150kg
